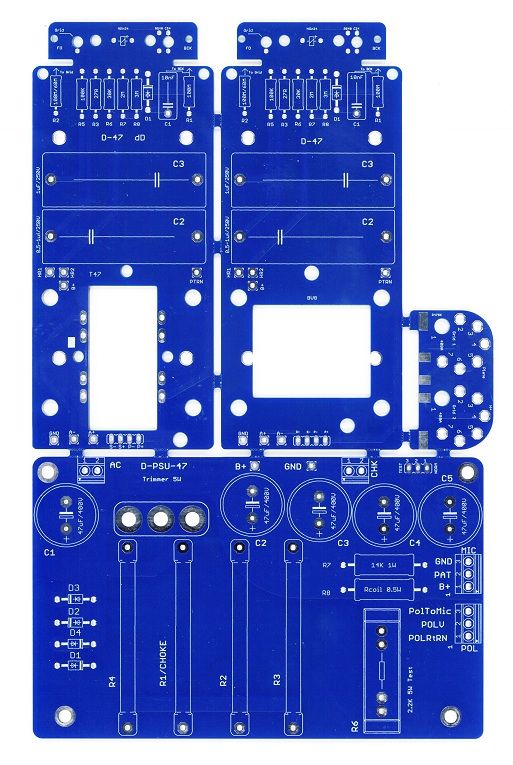

D-47 PCB Kit

D-47 PCB Kit – Legendary U47 Tube Microphone Circuit with Multi-Transformer Support

Recreate the legendary U47 tube microphone sound with the D-47 PCB Kit, designed for DIY builders and audio professionals seeking a high-fidelity, vintage-inspired microphone. This premium kit is engineered to accommodate the AMI BV08 Classic Series and AMI T47 transformers, with an extra PCB included for seamless integration of the Cinemag 2461 NiCo transformer.

Features:

✔ Authentic U47 Circuit Design – Faithfully replicates the classic U47 topology for the legendary warmth, depth, and detail.
✔ Multi-Transformer Compatibility – Designed to support AMI BV08 Classic Series, AMI T47, and Cinemag 2461 NiCo transformers with an additional PCB.
✔ High-Quality PCB Construction – Precision-manufactured traces for superior signal integrity and durability.
✔ DIY-Friendly Layout – Thoughtfully designed for easy assembly, making it suitable for both beginners and experienced builders.
✔ Vintage Tone with Modern Reliability – Offers the rich, smooth sound of the U47 while ensuring a reliable and efficient build process.

Perfect for those looking to craft a high-end U47-style microphone, the D-47 PCB Kit gives you flexibility in transformer selection, allowing you to fine-tune your microphone’s sonic character to your preference.

Start building your legendary U47 microphone today! 🎙️
