D-47 Tube Microphone Kit – The Legendary U47 Circuit
Recreate the iconic U47 with the D-47 Tube Microphone Kit, an authentic DIY version of the original U47 amplifier circuit developed in 1947. This revolutionary microphone circuit was the first to feature switchable polar patterns, and has since become the most revered vocal tube microphone in history, known for its rich, warm sound and unmatched detail.

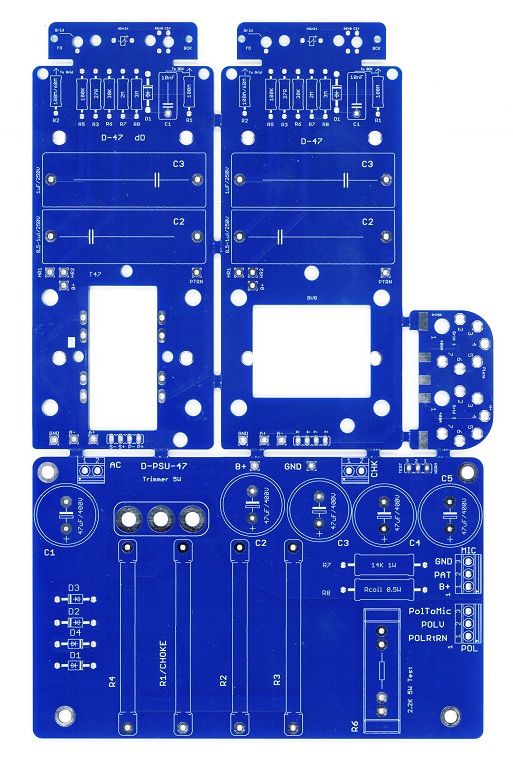

The D-47 Kit includes a carefully designed circuit featuring a Twin 6028/408A Pentode Tube in parallel, a concept first developed by Oliver Archut, aimed at reducing noise and output impedance to deliver the true character of the original U47. This makes the D-47 capable of capturing vocals with exceptional clarity and depth.

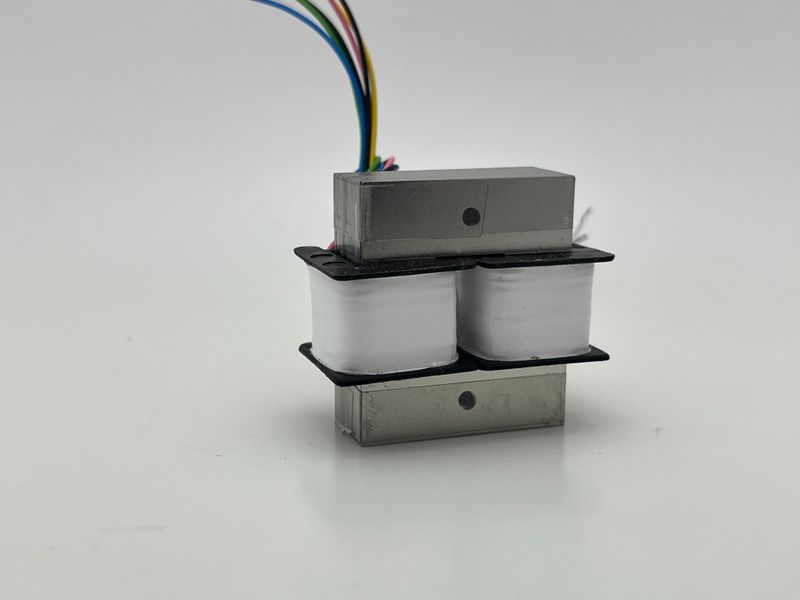

This kit is compatible with both K47 and M7 type condenser capsules, allowing you to choose the capsule that best suits your sound preferences. The D-47 also supports the AMI BV08 Classic Series Transformer and the AMI T47 Transformer for a classic, high-quality output. If you prefer, an additional PCB is available for the use of the Cinemag 2461 NiCo Transformer.

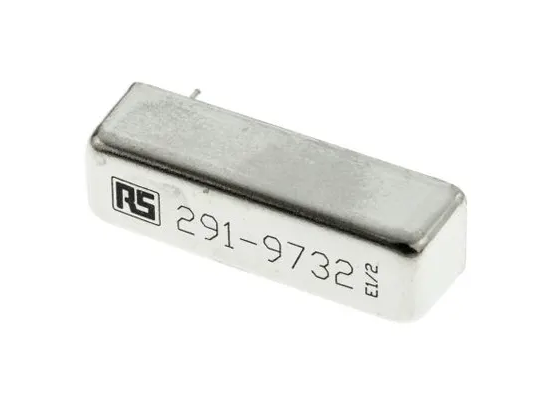

One of the standout features of this kit is the true omni pattern switching achieved through an ultra-High impedance relay, which is installed on the microphone PCB and controlled via the microphone PSU for seamless operation.
Features:
✔ Authentic U47 Design – Recreate the original U47 microphone circuit, known for its exceptional vocal performance and versatility.
✔ 6028/408A Pentode Tube Circuit – Reduce noise and output impedance for a vintage tone and high-performance sound quality.
✔ K47 & M7 Capsule Compatibility – Choose between these two iconic capsules to capture your sound with precision and warmth.
✔ Transformer Options – Compatible with AMI BV08 Classic Series Transformer, AMI T47 Transformer, or Cinemag 2461 NiCo Transformer for custom sound shaping.
✔ True Omni Pattern Switching – Achieved by an ultra-High impedance relay, offering reliable, true omni switching.
✔ Easy DIY Build – Includes everything you need for assembling the microphone, with clear instructions for a smooth process.
✔ Professional-Grade Sound – Delivers the rich, warm sound of a true vintage U47, perfect for vocals, instruments, and studio recording.
Bring the classic sound of the U47 to life with the D-47 Tube Microphone Kit, and experience the legendary tone that has shaped the history of recording.
Start building your own U47-inspired microphone today! 🎙️
